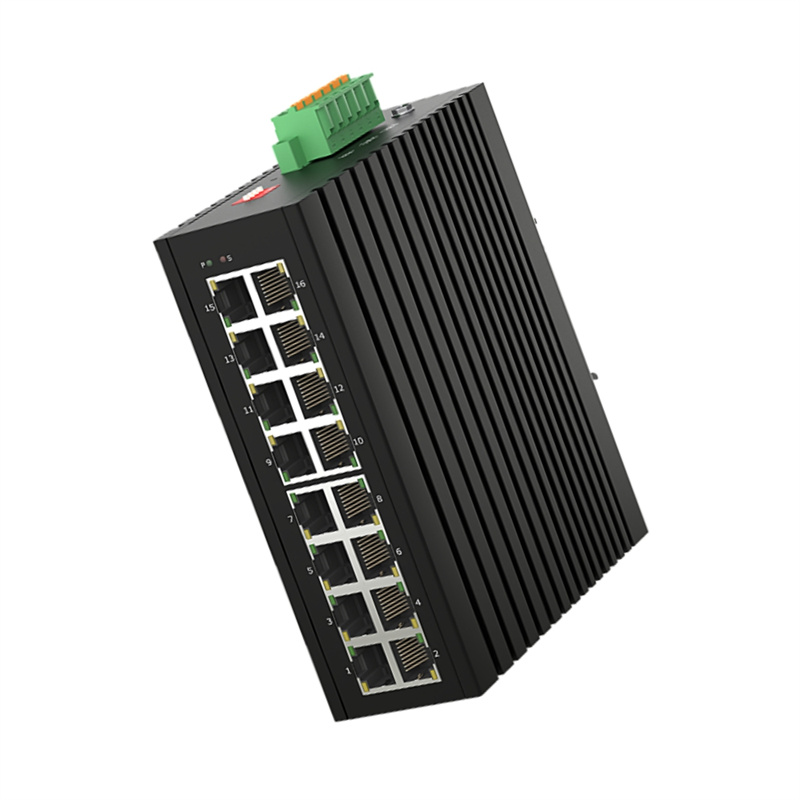

16*10/100Base-TX Unmanaged Industrial Ethernet Switch
Feature:
1). 16*10/100Base-TX RJ45 port.
2). 12-58VDC input, redundant power supply with polarity reverse/over-voltage protection.
3). Support one output relay alarm(terminal block Pin 5/6) for DC power failure.
4). Support powerful Dip switch function: 1). Port isolation, 2). Flow control, 3). QoS, 4). Broadcast storm restrain.
5). Support 10K bytes jumbo frame.
6). Support 6kV surge protection, 15kV ESD(air) protection, 8kV contact protection.
7). IP40 fan-less aluminum alloy housing and DIN-Rail hardware design.
8). Operating temperature: -40℃ to 75℃.
Overview:
The FlyingFiber FF-IES0016F is the highly reliable unmanaged industrial grade Ethernet switch with 16-port 10/100Base-TX RJ45. It is featuring with port isolation, flow control, QoS and broadcast storm restrain function, which all can be configured by the Dip switch on the top panel.
FF-IES0016F is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, such as wide range power input 12-58VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less housing with DIN-Rail installation, wide operating temperature from -40℃ to 75℃ as well as high-level EMI/EMC capability etc. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP surveillance and processing automation area where environmental conditions exceed commercial product specifications.
Technical Specification:
|
Interface |
Fiber port |
Ethernet (RJ45) port |
||
|
0 |
16 |
|||
|
16*10/100Base-TX RJ45 port |
||||
|
Alarm Port |
One relay output for power failure. Alarm relay current carry ability: 1A@24VDC |
|||
|
Standard |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet |
|||
|
Dip Switch |
1). Port isolation 2). Flow control 3). QoS 4). Broadcast storm restrain |
|||
|
LED Indicator |
P(Power indicator) Green |
Off: the device is power off or failed |
||
|
On: the device power on is normal |
||||
|
S(System indicator) Red |
Off: the chip is normal |
|||
|
On: the chip read/write is unnormal |
||||
|
1-16(RJ45 port) |
Green indicator |
Yellow indicator |
||
|
Off: port link down |
Off: port speed is 10M |
|||
|
On: port link up |
On: port speed is 100M |
|||
|
Blinking: data on TX/RX |
||||
|
Power Parameter |
||||
|
Input voltage |
12-58VDC, redundant power input |
|||
|
Input current |
0.6A Max |
|||
|
Total power consumption |
Full loading ≤8W |
|||
|
Connector |
Removable 6-pin terminal block, Pin 5-6 for relay alarm output |
|||
|
Reverse polarity protection |
Support |
|||
|
Over-voltage protection |
Support |
|||
|
Over-current protection |
Support |
|||
|
Switching Feature |
||||
|
Switching capacity |
3.2G |
|||
|
Packet forwarding rate |
4.76 Mpps |
|||
|
MAC address table |
8K |
|||
|
VLAN |
4K |
|||
|
Buffer |
2M |
|||
|
Forwarding delay |
<10us |
|||
|
Jumbo frame |
Support 10K bytes |
|||
|
MDX/MIDX |
Support |
|||
|
Watchdog |
Support |
|||
|
Network Topology |
||||
|
Star topology |
Support |
|||
|
Bus topology |
Support |
|||
|
Tree topology |
Support |
|||
|
Mechanical Structure |
||||
|
IP grade |
IP40 |
|||
|
Installation method |
DIN-Rail |
|||
|
Dimension(W*D*H)mm |
54*115*158mm |
|||
|
Weight |
1.35 kg |
|||
|
Operating Environment |
Operating temperature: -40℃ to 75℃ Storage temperature: -40℃ to 85℃ Relative humidity: 5% to 95%(non-condensing) |
|||
|
Industrial Standard |
EMI: FCC Part 15B Class A Surge protection of power: IEC 61000-4-5 6KV/4KV(8/20us) Surge protection of Ethernet port: IEC 61000-4-5 6KV/2KV(10/700us) RS: IEC 61000-4-3 80 MHz-1 GHz: 10V/m EFT: IEC 61000-4-4, power interface: 4kV, Ethernet port: 2kV CS: IEC 61000-4-6 10V ESD: IEC 61000-4-2 Level 4(8kV/15kV) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|||
|
Certification |
CE, FCC, RoHS |
|||
|
Warranty |
5 years |
|||

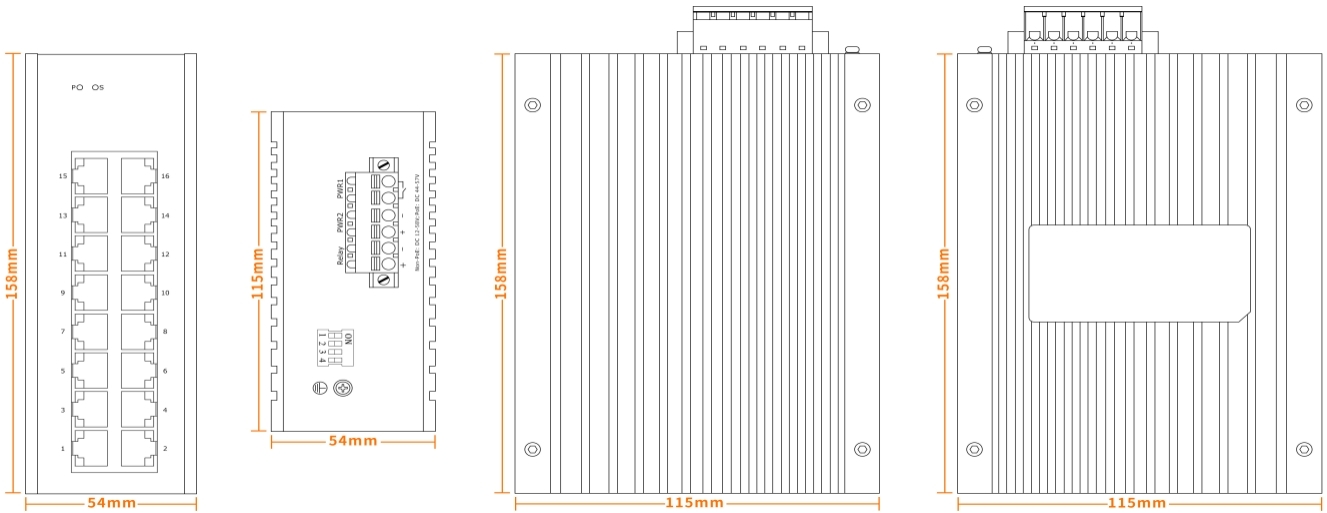

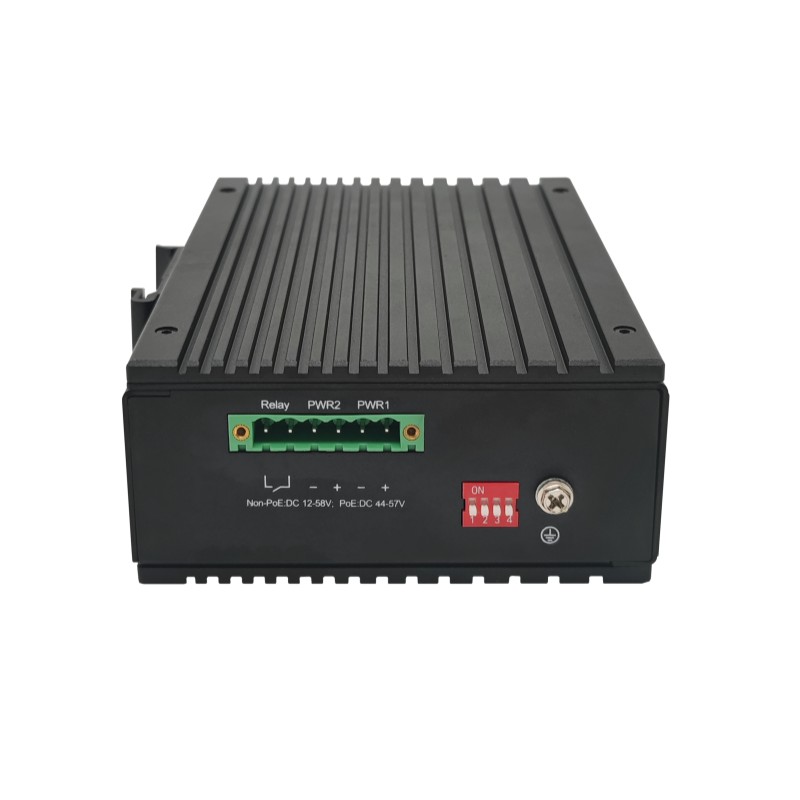

Structure Diagram:
Order Information:
|
Model No. |
Description |
|
FF-IES0016F |
Unmanaged industrial Ethernet switch, 16*10/100Base-TX RJ45 port, DIN-Rail, 12-58VDC, -40℃ to 75℃ operating temperature |
