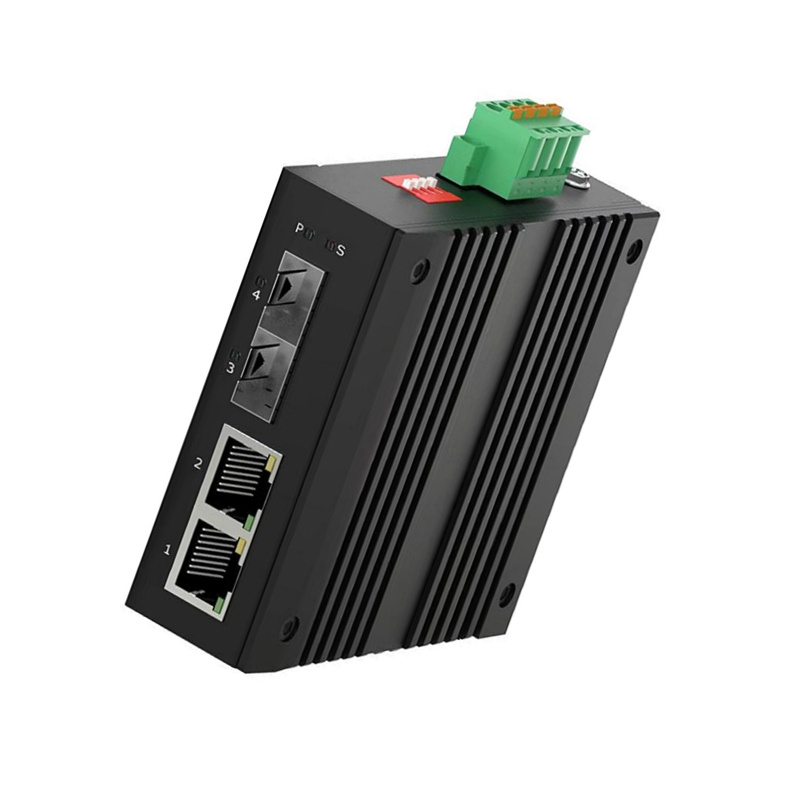

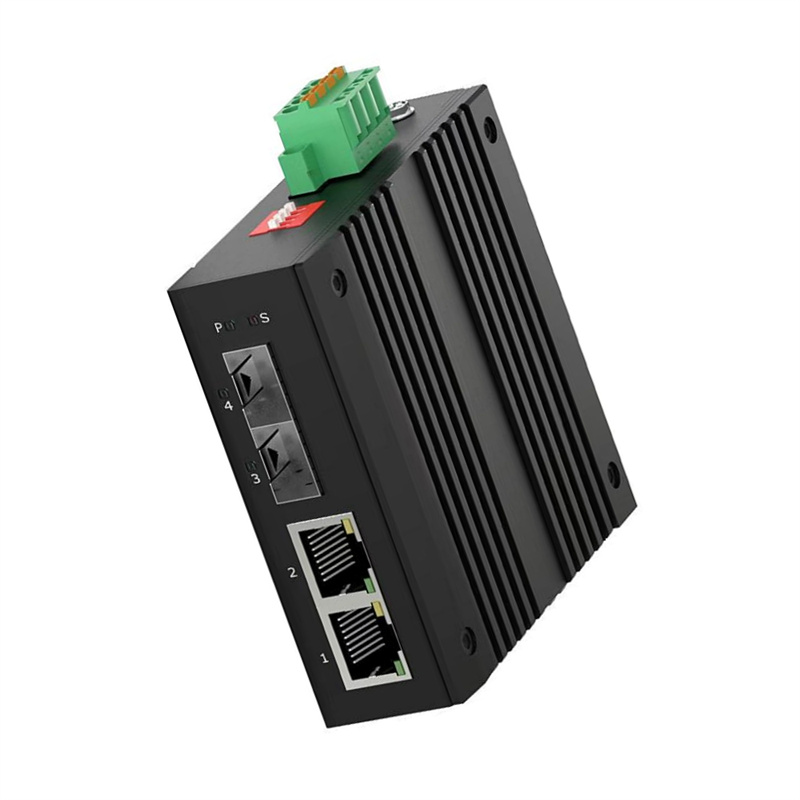

2*10/100/1000Base-TX to 2*1000Base-X Industrial Media Converter
Feature:
1). 2*10/100/1000Base-TX RJ45 port, 2*1000Base-X SFP slot.
2). 12-58VDC input, redundant power supply with polarity reverse/over-voltage protection.
3). Dip switch function: 1). LFP, 2). Flow control, 3). Broadcast storm restrain, 4). Fiber port 100/1000M selection.
4). Support watchdog, it can reboot automatically if the device is frozen.
5). Support 4kV surge protection, 15kV ESD(air) protection, 8kV contact protection.

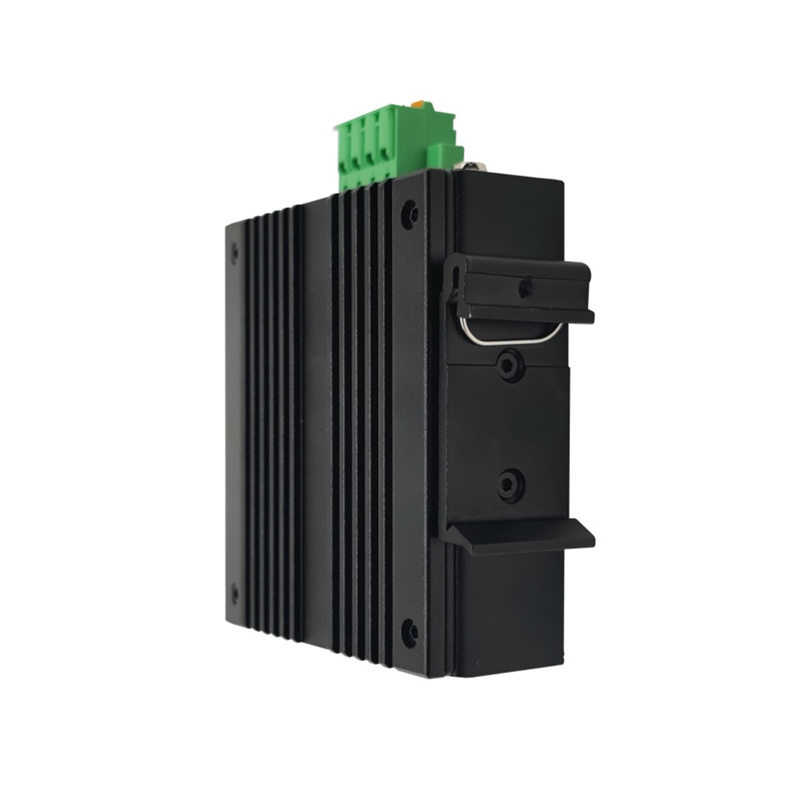

6). IP40 fan-less aluminum alloy housing and DIN-Rail hardware design with compact size(30*85*85mm).
7). Operating temperature: -40℃ to 75℃.
Overview:
The FlyingFiber FF-IMC0202G is the unmanaged industrial grade media converter with 2-port 10/100/1000Base-TX RJ45 and 2-port 1000Base-X SFP slot. It is featuring with LFP, flow control, broadcast storm restrain and fiber port 100/1000M selection function, which all can be configured by the Dip switch on the top panel.
FF-IMC0202G series are also high cost-effective easy-to-use device, which provide essential industrial Ethernet networking function, such as wide range power input 12-58VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less compact size housing with DIN-Rail installation, wide operating temperature from -40℃ to 75℃as well as high-level EMI/EMC capability etc. They are the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP surveillance and processing automation area where environmental conditions exceed commercial product specifications.
Technical Specification:
|
Interface |
Fiber port |
Ethernet (RJ45) port |
||
|
2 |
2 |
|||
|
2*10/100/1000Base-TX RJ45 port 2*1000Base-X SFP slot |
||||
|
Standard |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet |
|||
|
Dip Switch |
1). LFP 2). Flow control 3). Broadcast storm restrain 4). Fiber port 100/1000M selection |
|||
|
LED Indicator |
P(Power indicator) Green |
Off: the device is power off or failed |
||
|
On: the device power on is normal |
||||
|
S(System indicator) Red |
Off: the chip is normal |
|||
|
On: the chip read/write is unnormal |
||||
|
1-2(RJ45 port) |
Green indicator |
Yellow indicator |
||
|
Off: port link down |
Off: port speed is 10/100M |
|||
|
On: port link up |
On: port speed is 1000M |
|||
|
Blinking: data on TX/RX |
||||
|
3-4(Fiber port) Green |
Off: port link down |
|||
|
On: port link up |
||||
|
Blinking: data on TX/RX |
||||
|
Power Parameter |
||||
|
Input voltage |
12-58VDC, redundant power input |
|||
|
Input current |
0.3A Max |
|||
|
Total power consumption |
Full loading ≤3W |
|||
|
Connector |
Removable 4-pin terminal block |
|||
|
Reverse polarity protection |
Support |
|||
|
Over-voltage protection |
Support |
|||
|
Switching Feature |
||||
|
Switching capacity |
8.0G |
|||
|
Packet forwarding rate |
11.9 Mpps |
|||
|
MAC address table |
8K |
|||
|
VLAN |
4K |
|||
|
Buffer |
1M |
|||
|
Forwarding delay |
<10us |
|||
|
Jumbo frame |
Support 10K bytes |
|||
|
MDX/MIDX |
Support |
|||
|
Watchdog |
Support |
|||
|
Network Topology |
||||
|
Star topology |
Support |
|||
|
Bus topology |
Support |
|||
|
Tree topology |
Support |
|||
|
Mechanical Structure |
||||
|
IP grade |
IP40 |
|||
|
Installation method |
DIN-Rail |
|||
|
Dimension(W*D*H)mm |
30*85*85mm |
|||
|
Weight |
0.35 kg |
|||
|
Operating Environment |
Operating temperature: -40℃ to 75℃ Storage temperature: -40℃ to 85℃ Relative humidity: 5% to 95%(non-condensing) |
|||
|
Industrial Standard |
Surge protection of power: IEC 61000-4-5 Level 3(4kV/2kV, 8/20us) Surge protection of Ethernet port: IEC 61000-4-5 Level 3(4kV/2kV, 10/700us) DIP: IEC 61000-4-11 Level 3(10V) ESD: IEC 61000-4-2 Level 4(8kV/15kV) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|||
|
Certification |
CE, FCC, RoHS |
|||
|
Warranty |
5 years |
|||

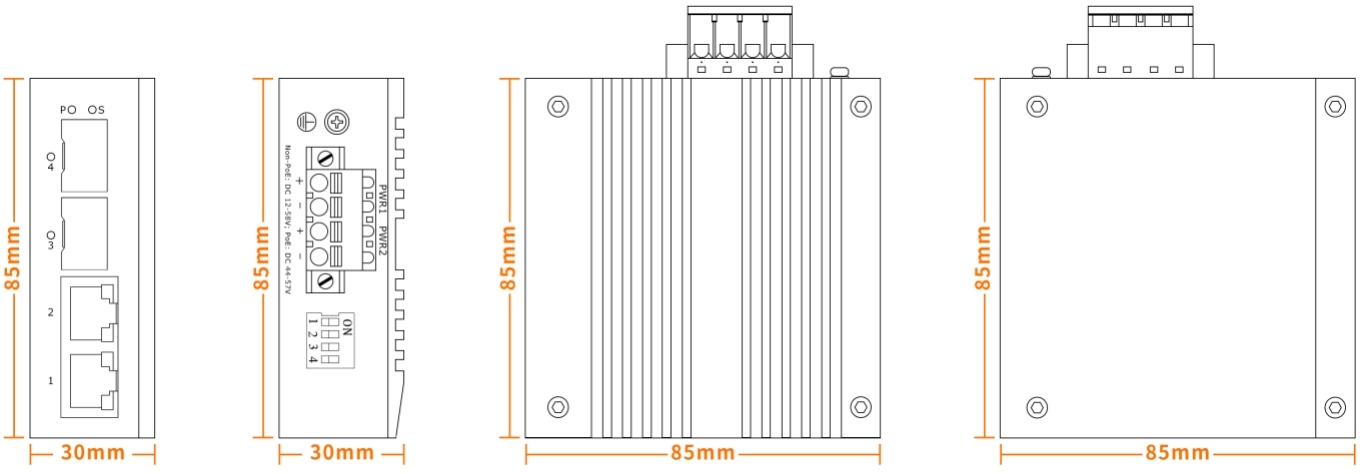

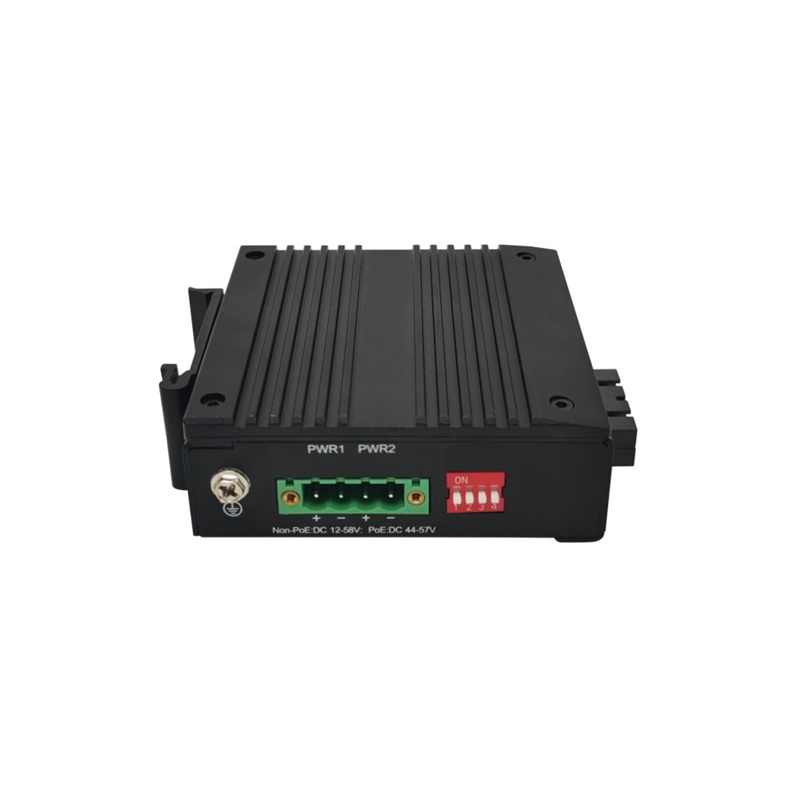

Structure Diagram:
Order Information:
|
Model No. |
Description |
|
FF-IMC0202G |
Industrial media converter, 2*10/100/1000Base-TX RJ45 port and 2*1000Base-X SFP slot, DIN-Rail, 12-58VDC, -40℃ to 75℃ operating temperature(Fiber port transmission distance depending on the SFP module) |
