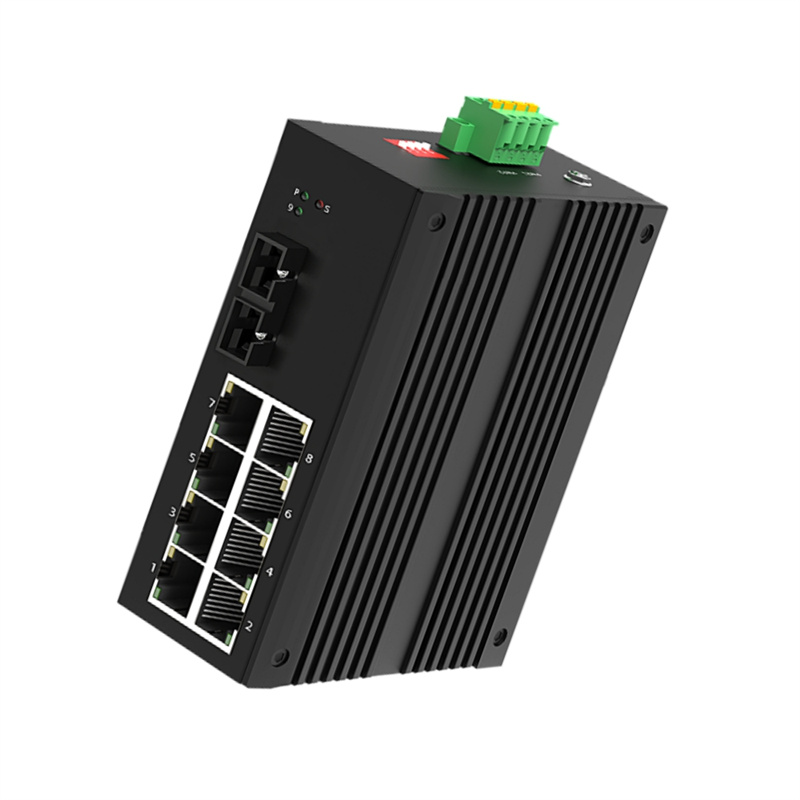

8*10/100/1000Base-TX to 1*1000Base-FX Unmanaged Industrial Ethernet Switch
Feature:
1). 8*10/100/1000Base-TX RJ45 port, 1*1000Base-FX SC/SFP(FC or ST is optional) fiber port.
2). 12-58VDC input, redundant power supply with polarity reverse/over-voltage protection.
3). Dip switch function: 1). Port isolation, 2). Flow control, 3). QoS, 4). Broadcast storm restrain.
4). Support 10K bytes jumbo frame.
5). Support 4kV surge protection, 15kV ESD(air) protection, 8kV contact protection.

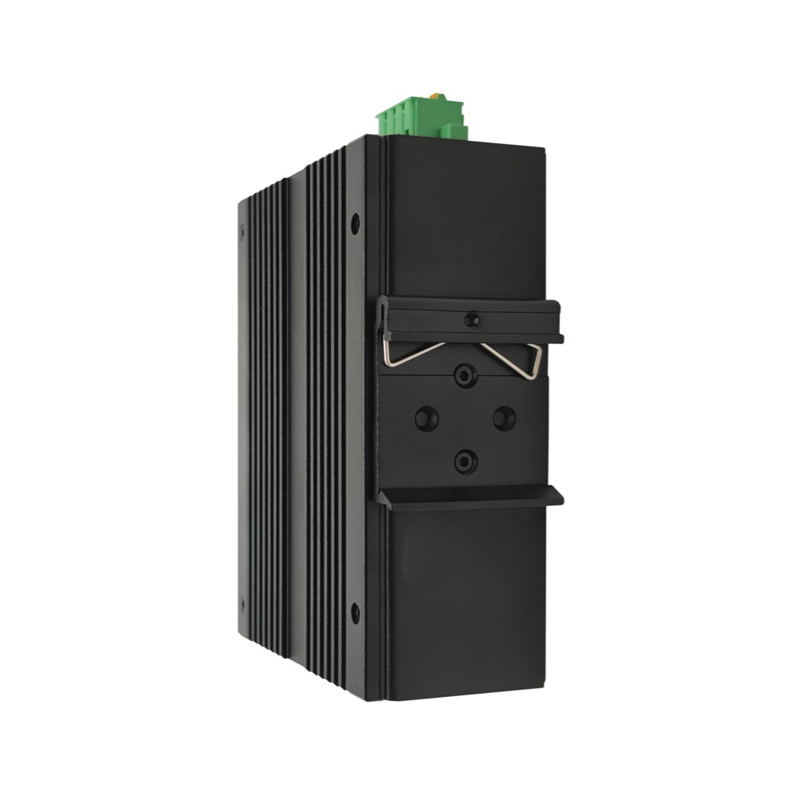

6). IP40 fan-less aluminum alloy housing and DIN-Rail hardware design.
7). Operating temperature: -40℃ to 75℃.
Overview:
The FlyingFiber FF-IES0108G is the unmanaged industrial grade Ethernet switch with 8-port 10/100/1000Base-TX RJ45 and 1-port 1000Base-FX SC/SFP(FC or ST is optional) fiber optical interface. It is featuring with port isolation, flow control, QoS and broadcast storm restrain function, which all can be configured by the Dip switch on the top panel.
FF-IES0108G is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, such as wide range power input 12-58VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less housing with DIN-Rail installation, wide operating temperature from -40°C to 75°C as well as high-level EMI/EMC capability etc. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP surveillance and processing automation area where environmental conditions exceed commercial product specifications.
Technical Specification:
|
Interface |
Fiber port |
Ethernet (RJ45) port |
||
|
1 |
8 |
|||
|
8*10/100/1000Base-TX RJ45 port 1*1000Base-FX SC/SFP(FC or ST is optional) fiber port |
||||
|
Standard |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet |
|||
|
Dip Switch |
1). Port isolation 2). Flow control 3). QoS 4). Broadcast storm restrain |
|||
|
LED Indicator |
P(Power indicator) Green |
Off: the device is power off or failed |
||
|
On: the device power on is normal |
||||
|
S(System indicator) Red |
Off: the chip is normal |
|||
|
On: the chip read/write is unnormal |
||||
|
1-8(RJ45 port) |
Green indicator |
Yellow indicator |
||
|
Off: port link down |
Off: port speed is 10/100M |
|||
|
On: port link up |
On: port speed is 1000M |
|||
|
Blinking: data on TX/RX |
||||
|
9(Fiber port) Green |
Off: port link down |
|||
|
On: port link up |
||||
|
Blinking: data on TX/RX |
||||
|
Power Parameter |
||||
|
Input voltage |
12-58VDC, redundant power input |
|||
|
Input current |
0.5A Max |
|||
|
Total power consumption |
Full loading ≤6.5W |
|||
|
Connector |
Removable 4-pin terminal block |
|||
|
Reverse polarity protection |
Support |
|||
|
Over-voltage protection |
Support |
|||
|
Switching Feature |
||||
|
Switching capacity |
18G |
|||
|
Packet forwarding rate |
26.7 Mpps |
|||
|
MAC address table |
8K |
|||
|
VLAN |
4K |
|||
|
Buffer |
2M |
|||
|
Forwarding delay |
<10us |
|||
|
Jumbo frame |
Support 10K bytes |
|||
|
MDX/MIDX |
Support |
|||
|
Watchdog |
Support |
|||
|
Network Topology |
||||
|
Star topology |
Support |
|||
|
Bus topology |
Support |
|||
|
Tree topology |
Support |
|||
|
Mechanical Structure |
||||
|
IP grade |
IP40 |
|||
|
Installation method |
DIN-Rail |
|||
|
Dimension(W*D*H)mm |
48*98*130mm |
|||
|
Weight |
0.7 kg |
|||
|
Operating Environment |
Operating temperature: -40℃ to 75℃ Storage temperature: -40℃ to 85℃ Relative humidity: 5% to 95%(non-condensing) |
|||
|
Industrial Standard |
Surge protection of power: IEC 61000-4-5 Level 3(4kV/2kV, 8/20us) Surge protection of Ethernet port: IEC 61000-4-5 Level 3(4kV/2kV, 10/700us) DIP: IEC 61000-4-11 Level 3(10V) ESD: IEC 61000-4-2 Level 4(8kV/15kV) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|||
|
Certification |
CE, FCC, RoHS |
|||
|
Warranty |
5 years |
|||

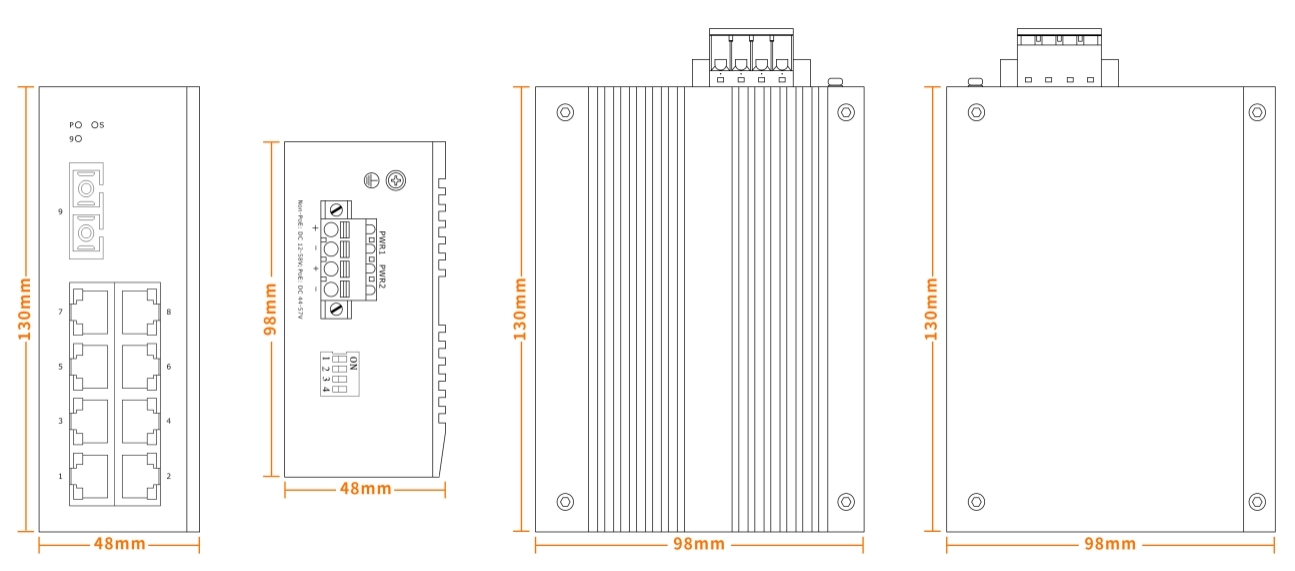

Structure Diagram:
Order Information:
|
Model No. |
Description |
|

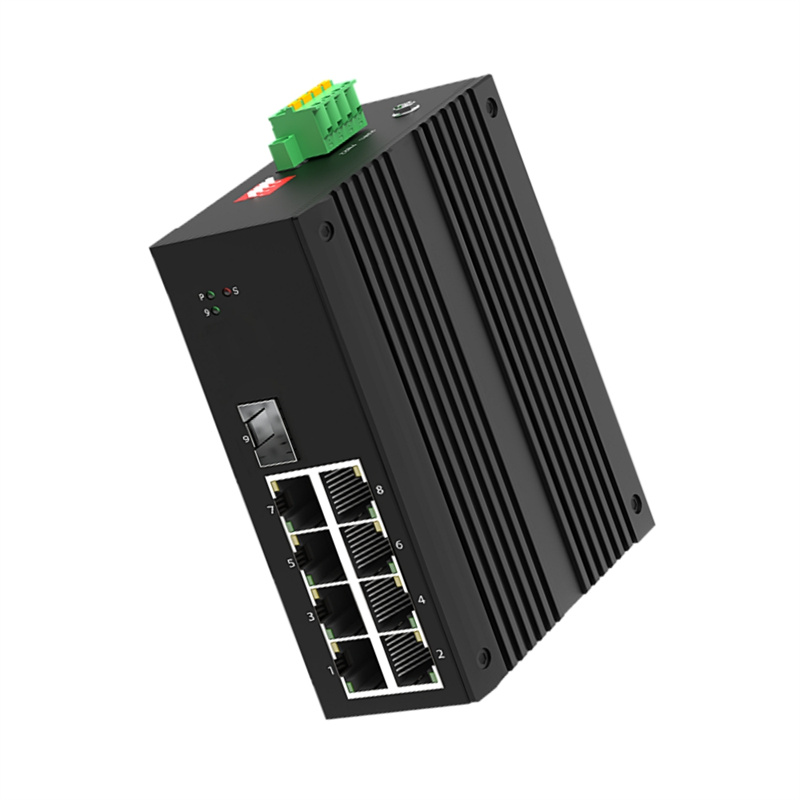

FF-IES0108G-SFP |
Unmanaged industrial Ethernet switch, 8*10/100/1000Base-TX RJ45 port and 1*1000Base-X SFP slot, DIN-Rail, 12-58VDC, -40℃ to 75℃ operating temperature(Fiber port transmission distance depending on the SFP module) |
|

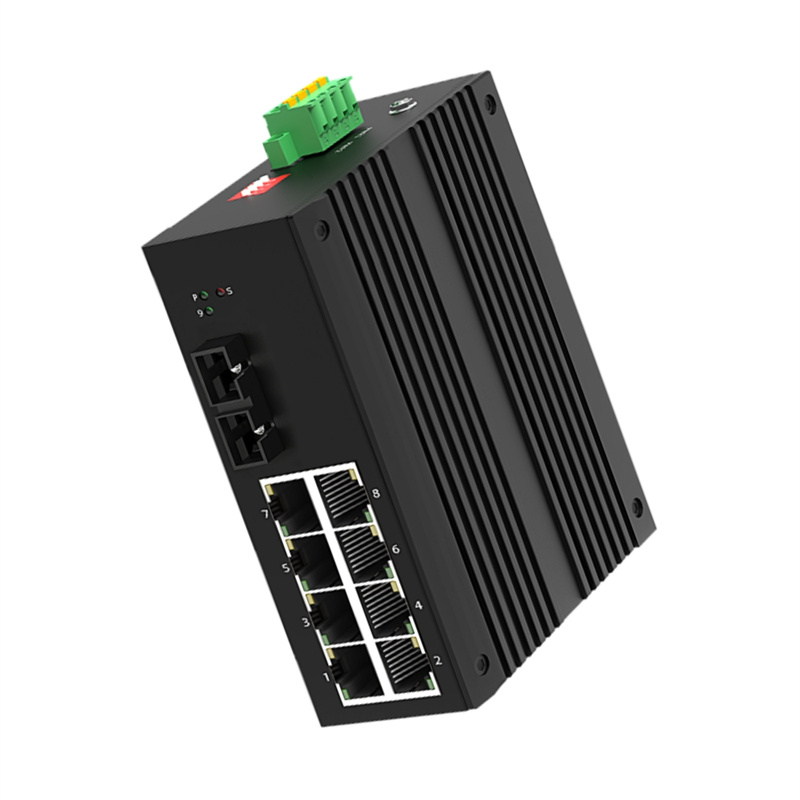

FF-IES0108G-SC |
Unmanaged industrial Ethernet switch, 8*10/100/1000Base-TX RJ45 port and 1*1000Base-FX SC port, Multi-mode/Single mode/dual fiber/single fiber, 550m, 20/40/60/80/100/120Km are optional, DIN-Rail, 12-58VDC, -40℃ to 75℃ operating temperature |
|
FF-IES0108G-FC |
Unmanaged industrial Ethernet switch, 8*10/100/1000Base-TX RJ45 port and 1*1000Base-FX FC port, Multi-mode/Single mode/dual fiber/single fiber, 550m, 20/40/60/80/100/120Km are optional, DIN-Rail, 12-58VDC, -40℃ to 75℃ operating temperature |
|
FF-IES0108G-ST |
Unmanaged industrial Ethernet switch, 8*10/100/1000Base-TX RJ45 port and 1*1000Base-FX ST port, Multi-mode/Single mode/dual fiber/single fiber, 550m, 20/40/60/80/100/120Km are optional, DIN-Rail, 12-58VDC, -40℃ to 75℃ operating temperature |
